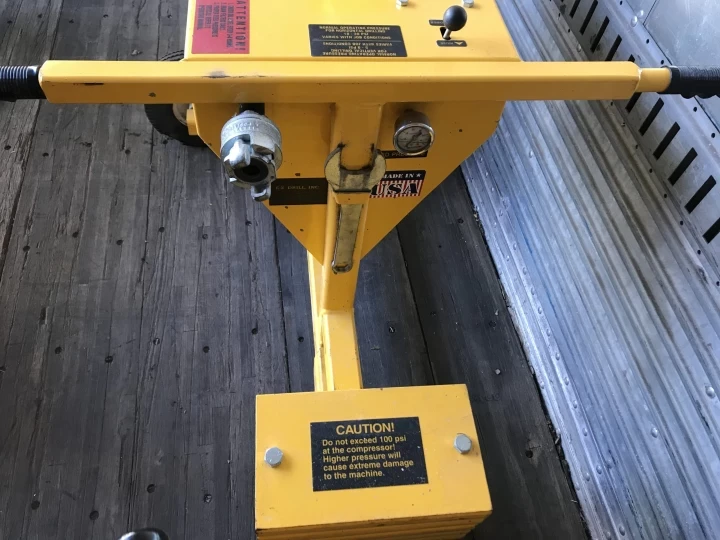

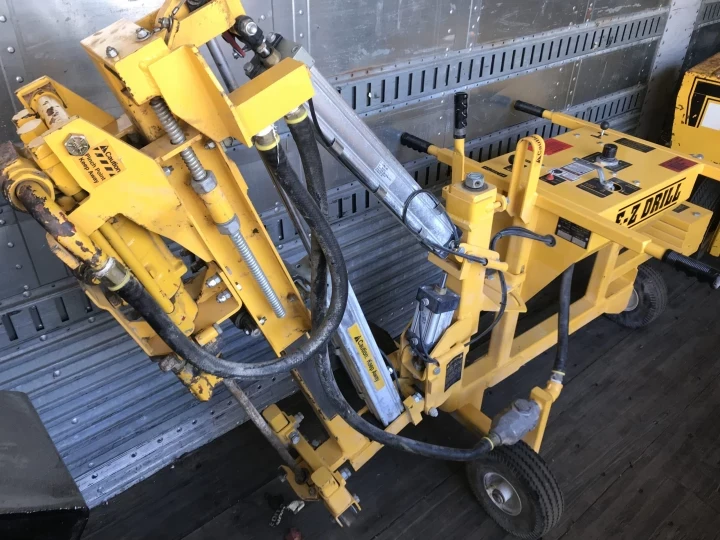

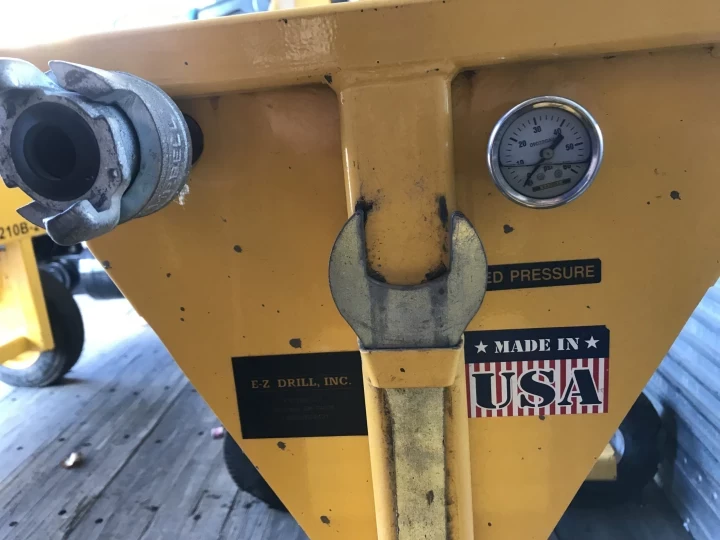

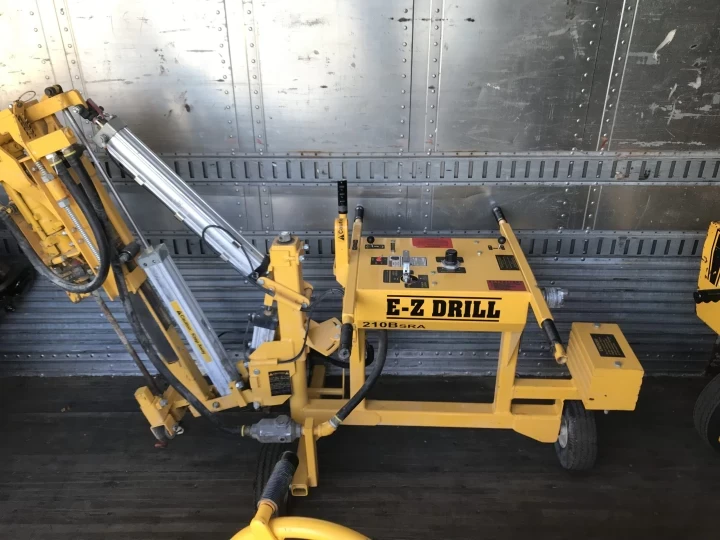

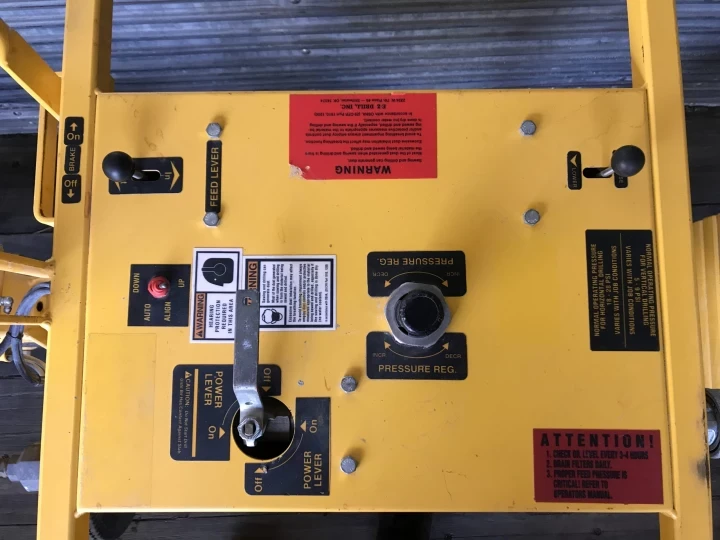

With the 210B SRA slab carrier, you can stitch or drill horizontally, vertically or at an angle with exceptional precision and without disturbing the subgrade. The unit can drill holes ranging from 5/8 to 2 1/2 inches in diameter to depths of 18 inches. It has an automatic alignment feature that tracks hole placement level for quick and easy repositioning. A roller bearing feed system ensures frictionless drilling for longer life, less maintenance and minimized downtime. Horizontal Position Lower Length (A) 46 in (116.8 cm) Overall Length (A) + (C) 94 in (238.8 cm) Cart Length (C) 48 in (121.9 cm) Wheel Base (D) 42 in (106.7 cm) Width 32 in (81.3 cm) Height (E) 32 in (81.3 cm) Weight 385 lbs (174.8 kg) Drill Distance From Corner 6 in (15.2 cm) Drill Distance From Ground 3 in (7.6 cm) Drill Depth (std.) 18 in (45.7 cm) Drill Bit Diameter 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm) Drill Distance From Wheel to Center of Bit (F) N/A Drill Motor (pneumatic) CP 32A Drill Motor Weight 54 lbs (24.5 kg) Chuck Size (std.) 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm) Air Consumption (minimum) 100 cfm (2.8 m 3 /min) Operating Pressure 90 psi (6.2 bar) Vertical Position Lower Length (A) N/A Lower Length (A) + (C) 73 in (185.4 cm) Cart Length (C) 54 in (137.2 cm) Wheel Base (D) 48 in (121.9 cm) Width 54 in (137.2 cm) Height (E) Varies Weight 1,150 lbs (522.1 kg) Drill Distance From Corner N/A Drill Distance From Ground Up to 12 in (30.5 cm) Drill Depth (std.) 18 in (45.7 cm) Drill Bit Diameter 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm) Distance From Wheel to Center of Bit (F) 21 1/2 in (54.6 cm) Drill Motor (pneumatic) CP 32A Drill Motor Weight 54 lbs (24.5 kg) Chuck Size (std.) 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm) Air Consumption (minimum) 100 cfm (2.8 m 3/min) Operating Pressure 90 psi (6.2 bar) Impact (ft. lbs./blow) 36 fpb (49 J)
